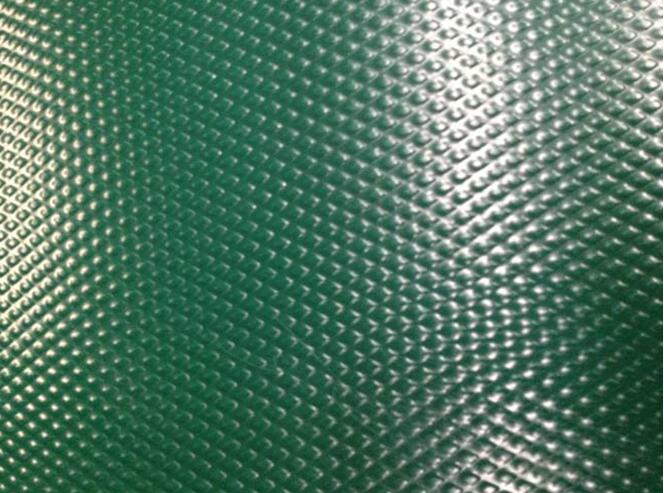

Rhombic embossed aluminium sheet coil with color-coated

China Supplier:Signi Aluminium
Author :frank
Guide :Rhombic color-coated embossed aluminium sheet coil is a kind of aluminium product which forms rhombic pattern on the surface of aluminium sheet after color-coated first and on the basis of color-coated aluminium sheet after calendering. It

Rhombic color-coated embossed aluminium sheet coil is a kind of aluminium product which forms rhombic pattern on the surface of aluminium sheet after color-coated first and on the basis of color-coated aluminium sheet after calendering. It is widely used, mainly in packaging, construction, curtain wall and so on. Henan Signi Aluminum produces and sells 1060,3003,5052 rhombic embossed aluminium sheets coil with color-coated.


Types of rhombic color-coated embossed aluminium sheets:

Rhombic color-coated embossed aluminium sheets are also of various types, but usually according to different classification methods, the varieties obtained are also different, and the detailed classification should be as follows:


1. According to the classification of alloy composition, the embossed aluminium sheet can be divided into rhombic color-coated embossed aluminium sheet with high purity (rolled from 99.5% pure aluminium) and 1050/1060/1070 H18 rhombic color-coated embossed aluminium sheet.

2. Rhombic color-coated embossed aluminium alloy sheet coil, 1100,3003,5052 rhombic color-coated embossed aluminium alloy plate.

3. Rhombic color-coated embossed aluminium sheet coating material, PE, PVDF etc., surface can be covered with protective film, according to customer requirements to cut the required size.



Rhombic color-coated embossed aluminium sheet size:

Thickness: 0.5mm~3.0mm

Width: 1250mm

Length: 2500mm or coil

Embossing depth: 0.1mm

Flower pattern: three-dimensional rhombus, ordinary rhombus

Color:White, green, black, orange, orange, or any customer specified
